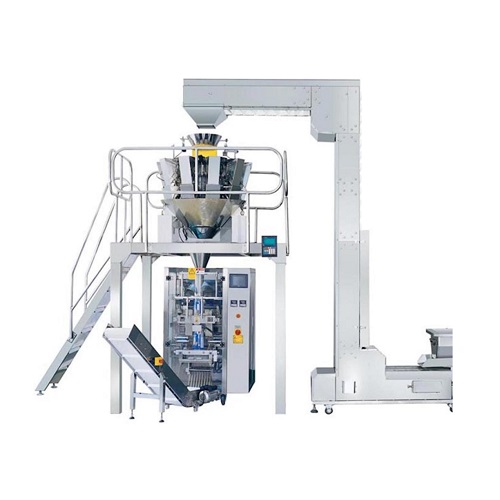

VFFS With 10 Head Weigher Pouch Packaging Machine

  • Multi head weigher is a gravimetric filling machine & is most precise & high speed machine for solid & free flowing various products. The product is fed to the top cone of the multi head weigher by cross feeder or bucket elevator and is distributed by the linear feeders to the load buckets. Then, it is dumped to the weigh buckets. When a combination is found between weigh buckets for the given weight, selected weigh buckets dump product in forming tube of the bagging machine.

    Features

    Highly precise, accurate & consistent weighing.

    High speed weighing process

    Can be easily integrated with bagging machines.

    Easy to clean & maintain hygiene.

  • PLC controller & touch screenHMI equipped for automation
  • AC motor driven bag length  control mechanism
  • Quick & easy size change over

Application Seeds, Namkeen, Snacks, Chips, Tea, Sugar, Rice, Pesticide Granules, Nuts , Dry Fruits, Puffed Food, Coffee beans, Jelly, Candy, Chocolate, Small Metal Parts , Pet Food, Kurkure , Soya Chunks Etc...



  • Bag Type

    Pillow Type Centre Sealed

    Individual Pack quantity

    5GM TO 1KG

    500GM TO 5KG

    Pack size Range



    Up to 520MM Open Roll Width (for 1KG)

    Up to 700MM Open Roll Width (for 5KG)

    Horizontal/Vertical Mechanism

    Pneumatically Driven/Servo Driven

    Packaging Material

    Heat Sealable Laminate

    Heat System

    Constant Through HD Heater

    Supply Voltage

    Stabilized 415v AC,3 Phase,50Hz/

    Stabilized 230v AC, Single Phase,50Hz

    Connected Load

    5hp

    Air Consumption

    3.00LIT/MIN @ Pressure 6KG/CM2

    Machine Body/Contact Parts

    MS With Powder Coated/Stainless Steel Grade ss304
